LED Surface Linear LSLIP/DL/CT
โคมลอยพร้อมหลอด LSLIP/DL/CT
LED Surface Linear LSLIP/DL/CT This luminaire is designed to use for office buildings.schools,storage areas,hospitals, and other working areas where is required highly uniformity illumination,etc.
| IP Rating | 40 |
|---|---|

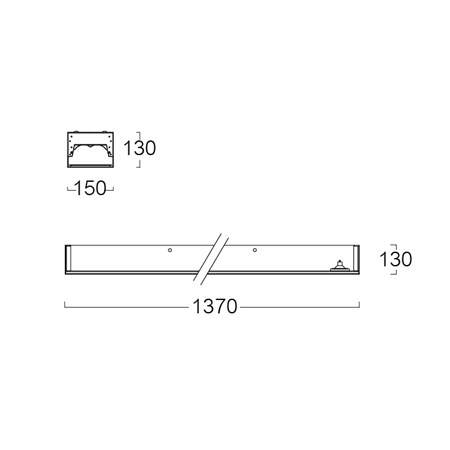

| Dimension | - |
| Power | LED-T8 / 2S:14-18W (2 lamps) / 2L:28-32W (2 lamps) |
| Housing | Die-formed cold roll steel |
| Finishing | Powder coated in white |
| Reflector | Mirror anodized aluminium |
| Diffuser | Opal Acrylic |
| Mounting | Surface |
| Light Source | LED-T8 |
| Lamp Holder | G13 |
| Colour Temperature | 3000/4000/6500K |
| Lamp Output | 2S:L&E : 2x7/8/9W:2x1050 lm |
| 2L:L&E : 2x14/16W:2x2100 lm | |
| Luminaire Output | 2S: 14/16/18W : 1338 lm |
| 2L: 28/32W : 2675 lm | |
| Power Supply | 220-240VAC, 50Hz |
| Power Factor | >0.9 |
| Insulation Class | I |
| LED Lifetime | L&E:25,000/50,000 hrs. |
| Equivalent | 14-18W:T5 2x14W/T8 2x18W |
| 28-32W:T5 2x28W/T8 2x36W |
