LED Street Light
โคมถนนพร้อมหลอด SLL210
Street Light SLL210 is designed to illuminate residences, streets,access roads,parking lots,highways, expressways,industrial areas,etc.
| IP Rating | 66 |
|---|---|

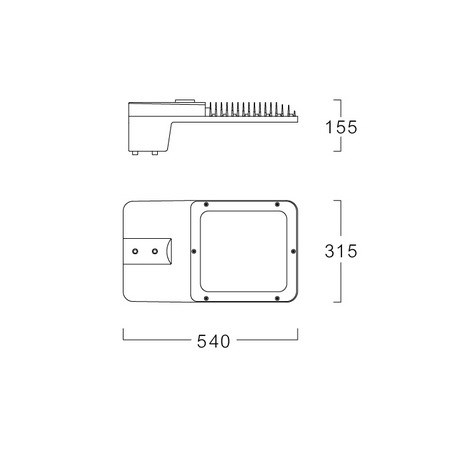

| Dimension | 315x540x155 mm |
| Power | LED / 70W / 105W / 150W |
| Housing | Die-cast aluminium |
| Front Cover | Clear toughened glass |
| Finishing | Powder coated in grey |
| Lens | Acrylic (PMMA) |
| Gasket | Silicone rubber |
| Mounting | Side entry pole or bracket arm with OD 60x120 mm. spigot |
| Light Source | LED Module |
| Colour Temperature | 4000/5700K |
| Luminaire Output | 70W : 9800 lm |
| 105W : 14700 lm | |
| 150W : 19500 lm | |

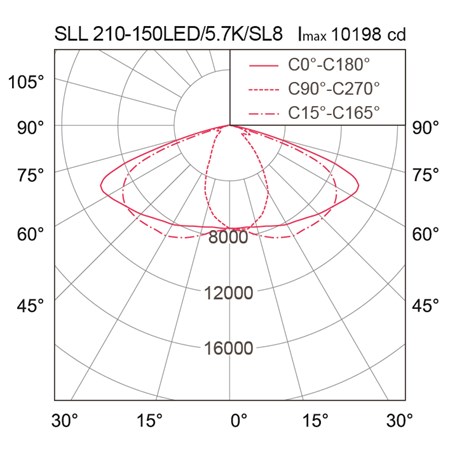

| Beam Angle | Street lighting distribution : SL8 |
| Forward throw distribution : FW4 | |
| Control Gear | Built-in driver |
| Power Supply | 220VAC 50Hz |
| Power Factor | > 0.95 |
| Insulation Class | I |
| Luminaire Lifetime | 50,000 hrs. |
| Equivalent | 70W : HPS 150W |
| 105W : HPS 250W | |
| 150W : HPS 400W |
