COB XL Series

APPLICATION

Stability & Reliability

ㆍFlip-chip RGB technology, less pixel failure

ㆍEnergy consumption reduced by 40%

ㆍPanel-type Encapsulating with six-star protection

ㆍ 1+1 redundant backup*



Micro LED Display

ㆍBlack as ink, smooth as a mirror

ㆍUltra-high contrast ratio 10000:1

ㆍ High refresh rate, high grayscale



Muti-installation

ㆍWall mount installation, hanging installation,

    steel structure installation

ㆍ Standard bordering frame optional

ㆍ Small cabnit optional

SPECIFICATION
IP Rating
Dimension
Power
Physical Parameter
LED Type 1 (XL1.5) Flip-Chip RGB
LED Type 1 (XL1.8) Flip-Chip RGB
Pixel Pitch (mm) (XL1.5) 1.53
Pixel Pitch (mm) (XL1.8) 1.86

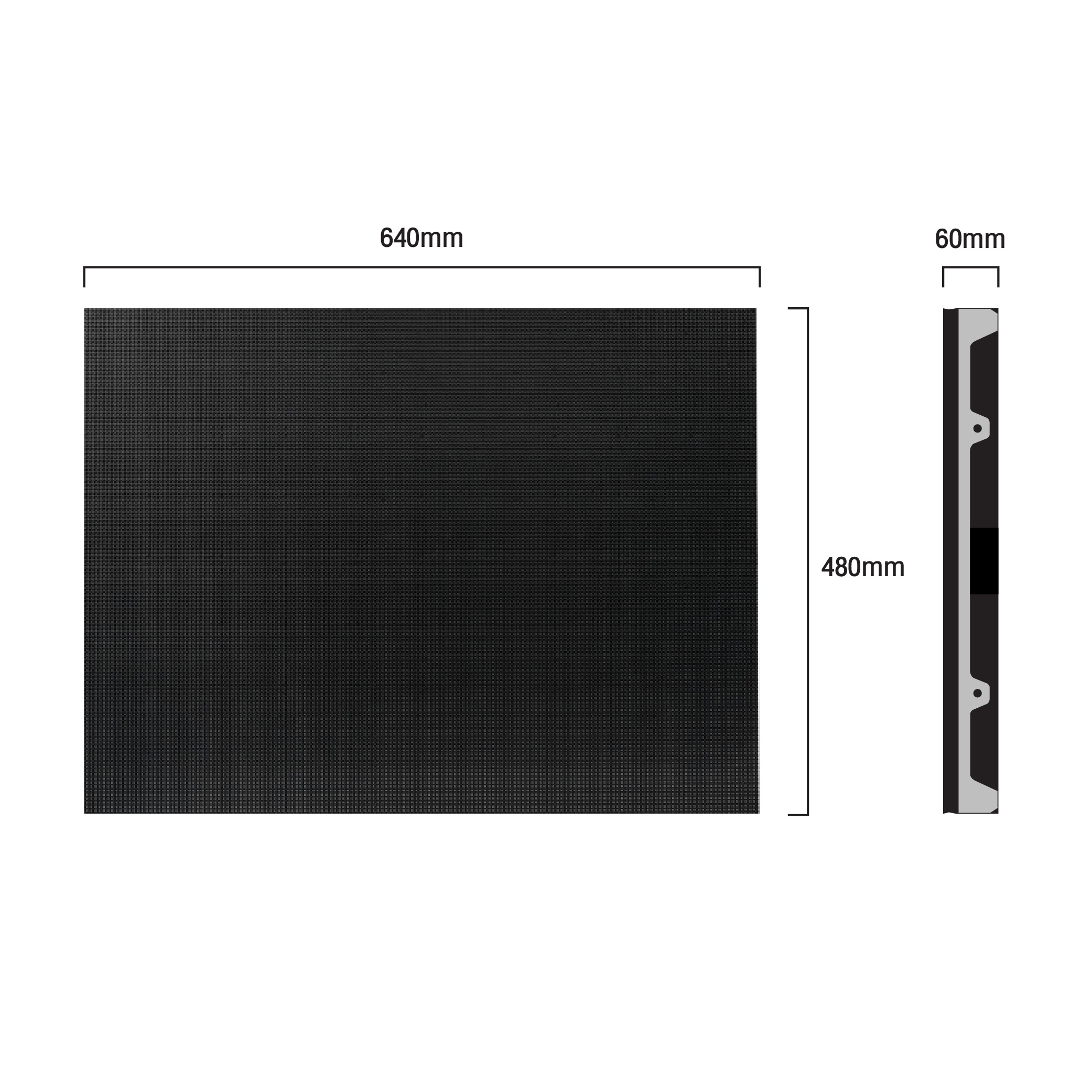

Panel Dimensions (WxH, mm) (XL1.5) 640x480x60
Panel Dimensions (WxH, mm) (XL1.8) 640x480x60
Panel Resolution (XL1.5) 416x312
Panel Resolution (XL1.8) 344x258
Panel Weight (kg) (XL1.5) 7.5
Panel Weight (kg) (XL1.8) 7.5
Panel Material (XL1.5) Die Casting Aluminum
Panel Material (XL1.8) Die Casting Aluminum
Module Size (WxH, mm)(XL1.5) 320x160
Module Size (WxH, mm)(XL1.8) 320x160
Optoelectronic Parameter
Brightness (nit) (XL1.5) 600
Brightness (nit) (XL1.8) 600
Refresh Rate (Hz) (XL1.5) 3840
Refresh Rate (Hz) (XL1.8) 3840
Grayscale (bit) (XL1.5) 15 (Internal Processing)
Grayscale (bit) (XL1.8) 15 (Internal Processing)
Contrast Ratio (XL1.5) 10000:1
Contrast Ratio (XL1.8) 10000:1

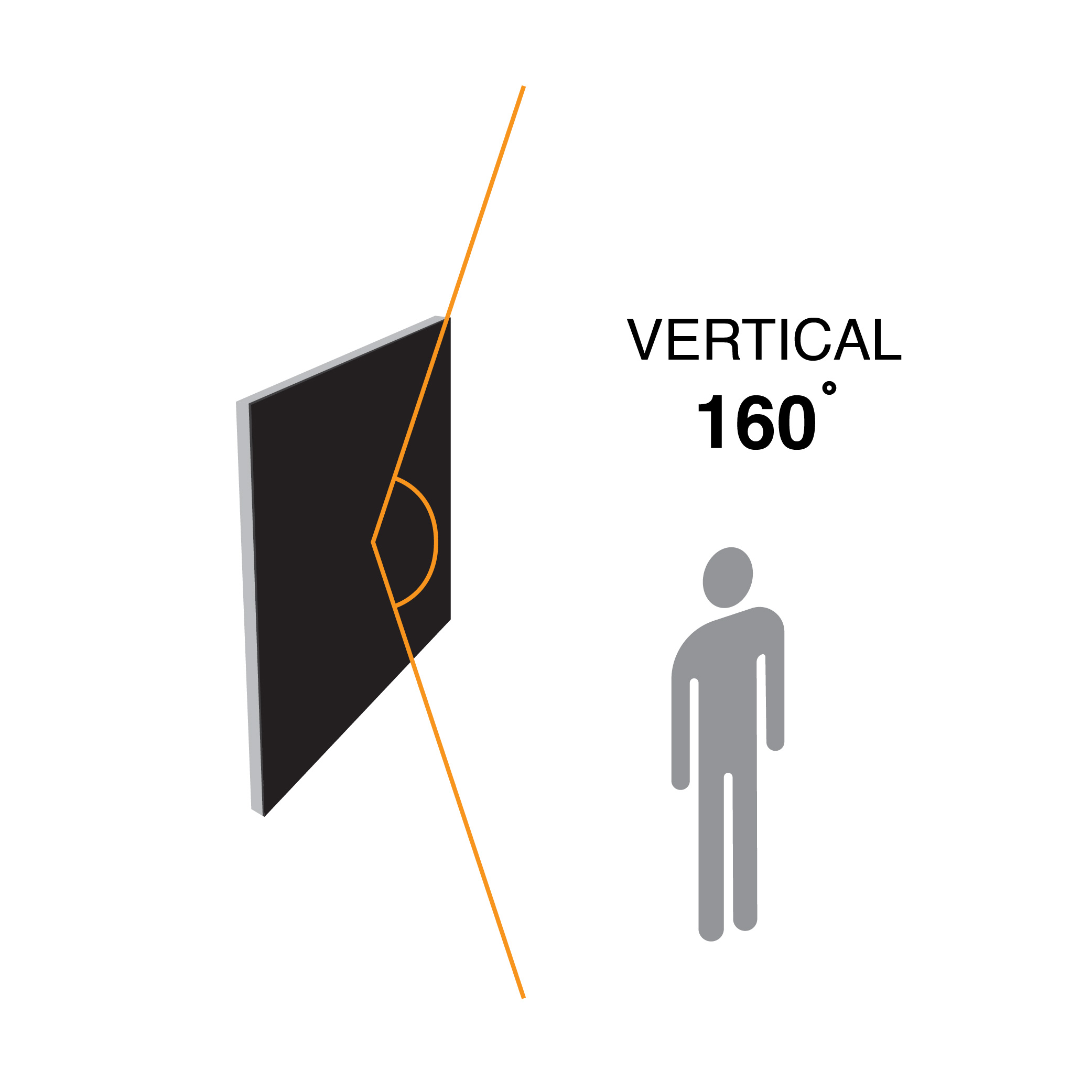

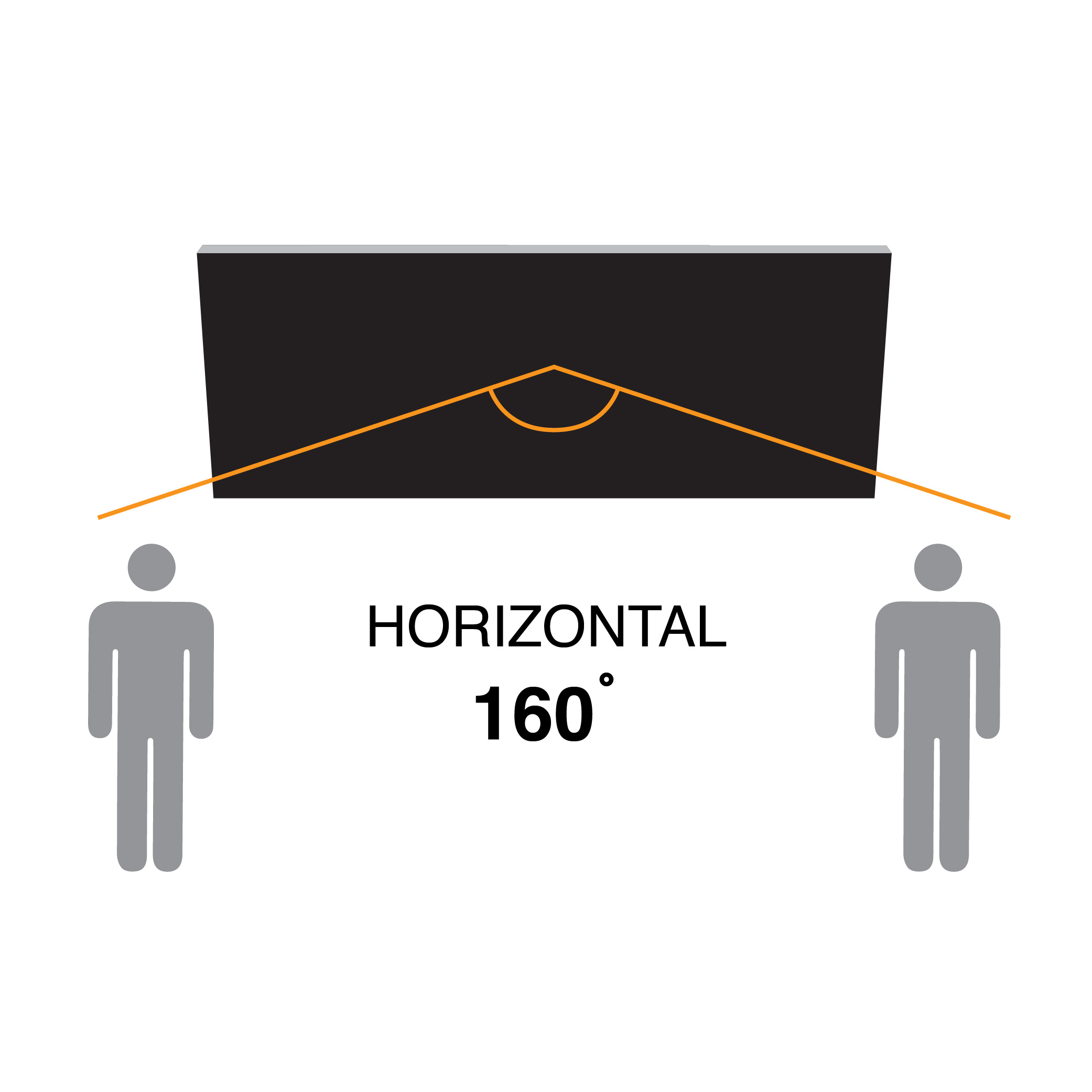

Viewing Angle (H/V, *) (XL1.5) 160/160
Viewing Angle (H/V, *) (XL1.8) 160/160
AC Operating Voltage (V) (XL1.5) 100-240
AC Operating Voltage (V) (XL1.8) 100-240
Power Consumption (max./avg., W/m²) (XL1.5) 290/97
Power Consumption (max./avg., W/m²) (XL1.8) 310/104
Application Parameter
Storage Temperature ( "C) (XL1.5) -40~+60
Storage Temperature ( "C) (XL1.8) -40~+60
Operating Temperature ( C) (XL1.5) -10~+40
Operating Temperature ( C) (XL1.8) -10~+40
Storage Humidity (RH) (XL1.5) 10%~85%
Storage Humidity (RH) (XL1.8) 10%~85%
Operating Humidity (RH) (XL1.5) 10%~80%
Operating Humidity (RH) (XL1.8) 10%~80%
IP Rating (XL1.5) IP40
IP Rating (XL1.8) IP21
Certificate (XL1.5) CCC, CE, ETL, FCC, UKCA
Certificate (XL1.8) CCC, CE, ETL, FCC, UKCA
Dimension
Photometric Data
