TRL80K

APPLICATION

Track light is designed to use for office

buildings,shopping centers,convenience

stores,modern trade stores,discount

stores,hotels,resturants,residences,

museums,recreational centers,etc.

SPECIFICATION
IP Rating 20
Dimension
Power 14 / 18 / 20 / 23W
Colour Temperature 3000/4000/5000K
CRI >90/ >90/ >80
LED Output 14W : 1540/1660/1805 Im
18W : 2062/2226/2418 Im
20W : 2200/2370/2575 Im
23W : 2635/2845/3090 Im
Luminaire Output 14W : 1377/1487/1611 Im*
18W : 1709/1846/2000 lm*
20W : 1936/2091/2265 Im**
23W : 2305/2490/2697 Im **
Beam Angle 14/18W : 10/15/20/36/50 Degree
20/23W : 20/26/38/50 Degree
LED Lifetime 40,000 hrs.
IES-TRL80K 14W-3000K-10Degree
14W-3000K-15Degree
14W-3000K-20Degree
14W-3000K-36Degree
14W-3000K-50Degree
18W-3000K-10Degree
18W-3000K-15Degree
18W-3000K-20Degree
18W-3000K-36Degree
18W-3000K-50Degree
20W-3000K-20Degree
20W-3000K-26Degree
20W-3000K-38Degree
20W-3000K-50Degree
23W-3000K-20Degree
23W-3000K-26Degree
23W-3000K-38Degree
23W-3000K-50Degree

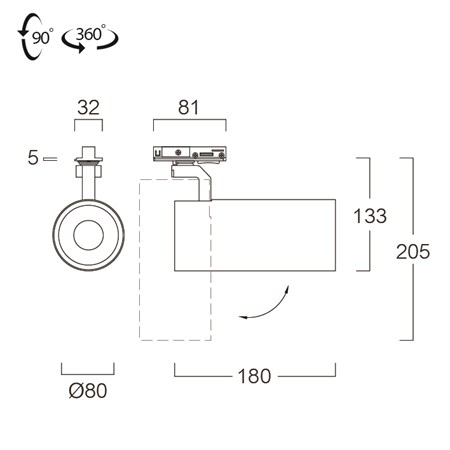

Dimension

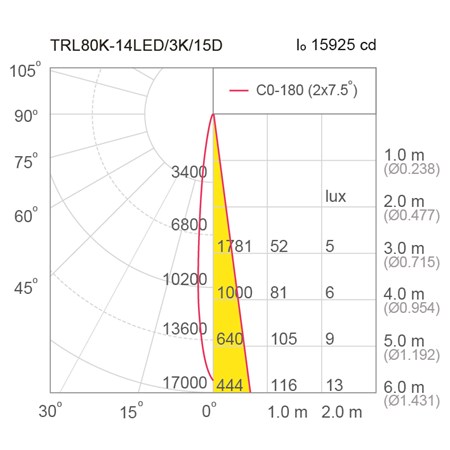

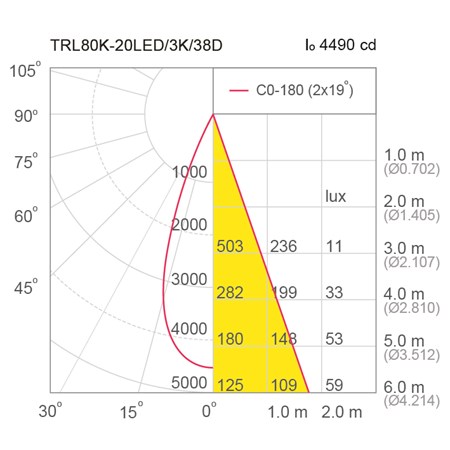

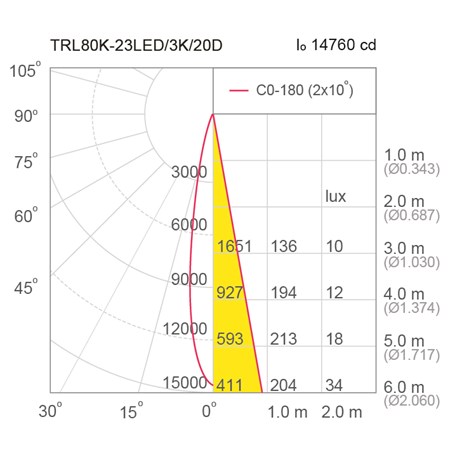

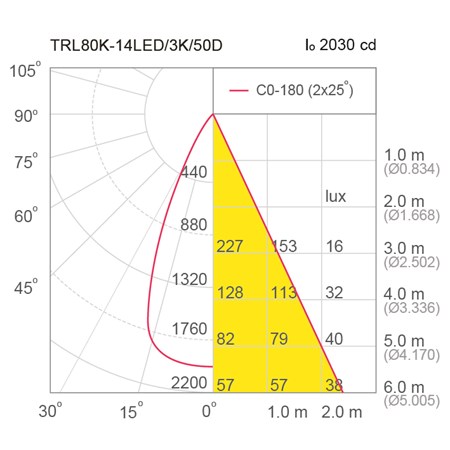

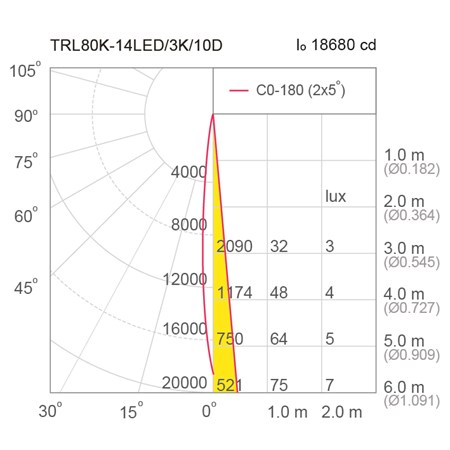

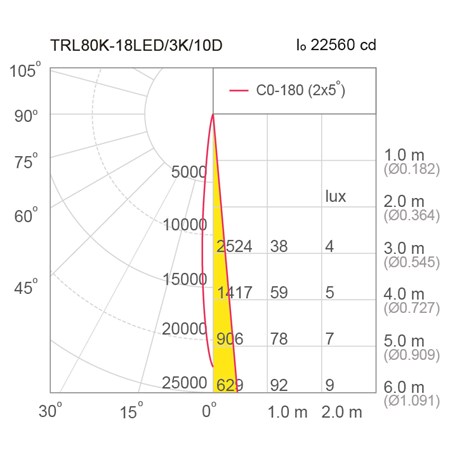

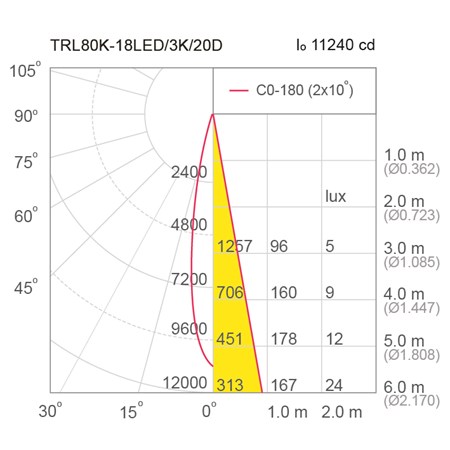

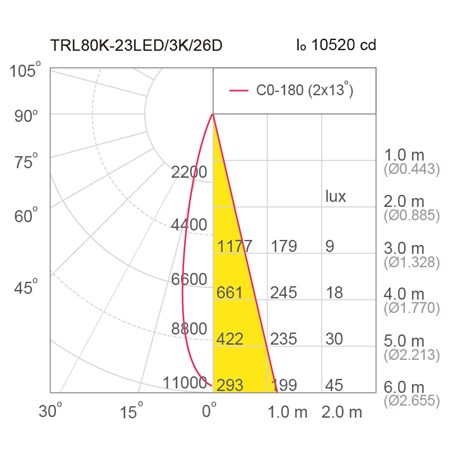

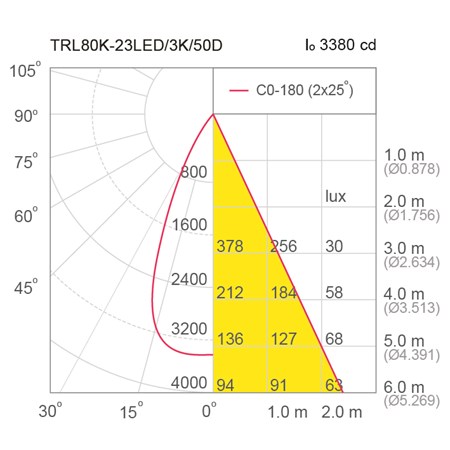

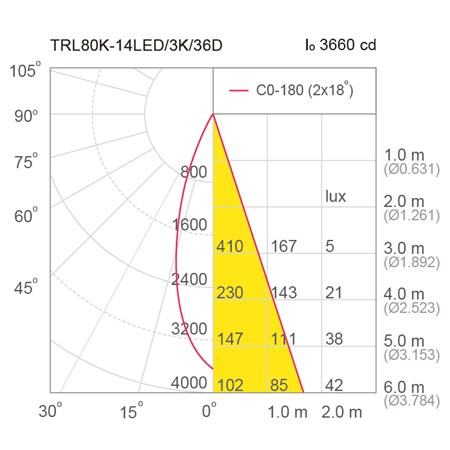

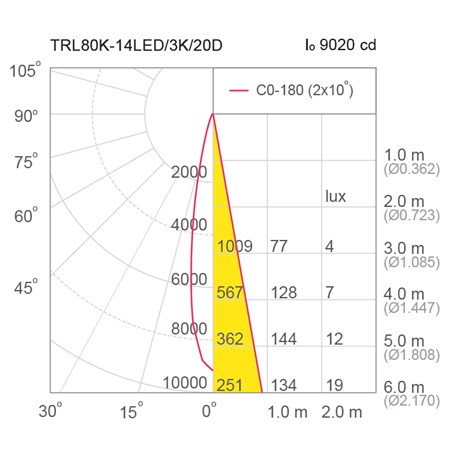

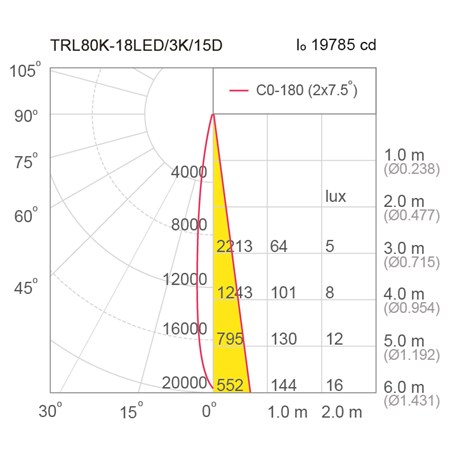

Photometric Data
